Understanding Seismic Parameters





Understanding the different seismic analysis parameters is an integral part of the seismic analysis. It is very important for a structural designer to thoroughly understand each of these parameters to be able to come up with a convincing design. In this article, the author will be tackled about the different seismic parameters commonly used in structural analysis.  Seismic design related terms and some “never heard before” terms will be defined and discuss in a simplified manner.

Building Irregularities

Building irregularity includes the soft and weak story, large changes in mass stiffness ratio between adjacent floors, large changes in plan dimensions from floor to floor and significant horizontal offset in the lateral load systems. These irregularities are the significant source of earthquake damages and are most vulnerable in terms of an earthquake event. As a structural designer, it is essentials to identify these irregularities to at least find a solution to prevent the building from some serious damages that maybe strike caused by an earthquake. According to the design codes, the common types of building irregularities are:

  1. Weak Story or the Inter story Strength Irregularity

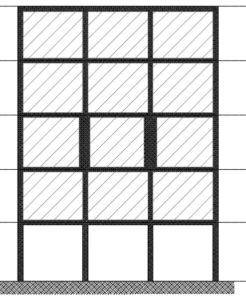

This is the type of building irregularity wherein the one of the story strength is less than 80% of the story above. These are the building structures that the lower part of the building shows a lower lateral structural resistance compared to the rests of the floor. The building weakest part is most likely to suffer a severe damage due to the different loads e.g.  Vertical loads, lateral loads and loads due to moments caused by the ground movements. Weak story configurations often classified as hotels and hospital buildings wherein the higher floors carry a significant amount of loads compared to the floors underneath. The figure below shows the example of a weak story irregularity.

READ ALSO:   Pier and Spandrel Labeling for ETABS Shear Wall Design

  1. Soft Story or the Inter story stiffness Irregularity

This is the type of building irregularity characterized by the significant lower in stiffness compared to the rests of the floors. This is most common and present in the modern day buildings wherein the masonry walls are piled up on the upper floors while the lower floor is empty or no walls at all. The lower floors are the critical part and may suffer a major damage when the earthquake occurs. The figure below shows the example of a soft story irregularity.



  1. Discontinuity of Vertical Structural Elements

This is the type of building irregularity wherein, in the buildings we can see the columns are removed at some stories and supported by beams or columns underneath, or a structural wall of upper floors are supported by beam and columns or underneath beams. Buildings with transfer columns or walls fall on this category. The figure below shows the example of a discontinuity of vertical structural elements.

Types of Seismic Analysis Method as adopted on UBC and IBC code

  1. Equivalent Seismic Load Method is the simplified single-mode response-spectrum analysis method, which can be used for low to medium-rise buildings. This can be used for structures with the height having less than 40m
  2. Multi-Mode Response Spectrum Analysis Method is an advanced linear dynamic analysis method, which we can use for both low to medium-rise as well as tall buildings. In this method, maximum internal forces and displacements are determined by the statistical combination of maximum contributions obtained in a sufficient number of natural vibration modes to be considered.
  3. Linear Response History Analysis Method is the most advanced linear dynamic analysis method, which can be used for low to medium rise as well as tall buildings. This analysis is based on a mode-superposition procedure that may be performed according to  Multi-Mode Response Spectrum Analysis.
  4. Nonlinear Response History Analysis Method may be performed by direct integration of nonlinear equations of motions according to multi-mode response spectrum and linear response history analysis.
READ ALSO:   8-Reasons Why ETABS takes too Long to Run Analysis

DIAPHRAGMS

A diaphragm is a horizontal or nearly horizontal system acting to transmit lateral forces to the vertical resisting elements. The term “diaphragm” includes horizontal bracing systems. They collect and transmit the inertial forces to the vertical structural systems to act together in resisting the horizontal seismic action.

There are two types of diaphragm:

  1. RIGID DIAPHRAGM– can rotate and it can translate, but cannot deform. The lateral forces will be distributed & redistributed at the subsequent levels based upon the relative stiffness of all the members resisting lateral loads at each level. When applied in software, the beam in the lateral system had no axial force.
  2. SEMI-RIGID DIAPHRAGM– used mainly for defines the wind load and give the building the ability to behave as its actual behavior.

This is an open article, we will soon be discussing the physical meaning of “Damping”, Mass Source and other seismic related terms necessary in structural analysis. Stay tuned or subscribe to our newsletter for any updates. Feel free to suggest a topic to discuss related to this article by leaving a comment on the below form.
