Design of Concrete Spacer





Just like the reinforcement chairs as discussed in the previous article, the concrete spacer plays a vital role as well to keep and maintained the standard concrete cover required whether in beams, columns, wall, and slabs. We all know that maintaining concrete cover is a very significant aspect of the structural integrity of the building. To mention a few, it helps to protect the steel reinforcement from corrosion as well as protection during or when the structure in on fire. The standard and proper concrete cover can only achieve and maintained using the concrete spacer, by designing it depending on the loads it can carry.

This article will show you the specific way if the concrete spacer we are providing specifically in raft foundation is strong enough to withstand the load of reinforcement. Since the reinforcement chair and the concrete spacer has similar usage and to be consistent, we will use the same data given in the previous article- Reinforcement Chair Design. Below are the given data:

  • Raft thickness: 2000mm thick
  • Main Mesh Reinforcement:
    • Top: T25-200mm both ways
    • Bottom: T32-200mm both ways
  • The weight of Rebar that the concrete spacer will carry
    • Top Reinforcement: 0.378 kN/m length
    • Bottom Reinforcement: 0.632 kN/m length
    • Live Load: 1.5kN/m2

Total weight to be carried by concrete spacer: 2.51 kN/m2

Try 100mmx100mm concrete spacer with the thickness ranges from 50mm to 75mm for raft foundation.

  • fc’ of concrete spacer = 60MPa
  • fc’ of blinding concrete= 20MPa



  • Calculate for the Maximum Capacity of the Concrete Spacer

    • Assumed SBC: 500kN/m2
    •   with a factor of safety of 2.5:
    • Allowable SBC= 500 kN/m2/2.5 = 200 kN/m2

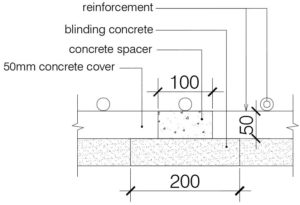

We all know that concrete spacer is resting on the blinding concrete as shown in the image above. In a way, the blinding concrete is also carrying the load of the reinforcement. Approximately the effective width of the part of the blinding concrete carrying the concrete spacer is equal to the concrete cover or in our example, 50mm. applying it on both sides of the spacer that makes that 200mm effective width. Therefore we will use 200mmx200mm dimension for the capacity check. In this example, let us assume a soil bearing capacity of 500 kN/m2  or we can confirm the SBC on the available geotechnical report.

Calculations:

Maximum Capacity of concrete spacer= 0.20m, x 0.2m x 200 kN/m2 = 8.0 kN

Area that Required a Spacer = 2.51 kN/m2/8.0kN = 0.31 m2

Spacing=√0.31m = 0.56m say 0.5 meter on center

Therefore:

use 100mmx100mm spacer every 0.50 meter on center

Please refer to below Concrete Spaces Design calculator for your reference following the above article.

Concrete Spacer Design Calculator

The Structural World | Structural Engineering Design Tool

1. Design Parameters

2. Bearing Capacity Parameters

Set the preferred maximum construction spacing.

3. Design Results

Total Applied Load 2.510 kN/m²
Allowable Bearing Pressure 200.00 kN/m²
Effective Bearing Width 200 mm
Spacer Bearing Capacity 8.00 kN
Theoretical Maximum Spacing 1.79 m
Adopted Spacer Spacing 0.50 m
DESIGN RECOMMENDATION
Use 100 x 100 mm concrete spacers at 500 mm on center.
Calculation Summary
Allowable bearing pressure = SBC / FOS
Spacer capacity = Effective area x Allowable bearing pressure
Maximum spacing = Square root (Spacer capacity / Applied load)

Note: This calculator provides a preliminary bearing-capacity and spacing check based on the stated assumptions. The effective bearing area is assumed to extend by the concrete cover on each side of the spacer. Concrete crushing, local bearing, blinding thickness and strength, construction loads, stability and actual support conditions must be independently verified by the structural engineer.
